Wireless Pet Electronic Fence Intelligent Remote Control Dog Training Device
Dog training smart system with training mode and wireless fence mode dog training collar with remote
Specification
|
Specification(1 Collar) |
|
| Model | X3 |
| Packing size(1 collar) | 6.7*4.49*1.73 inches |
| Package weight(1 collar) | 0.63 Pounds |
| Remote control weight(single) | 0.15 Pounds |
| Collar weight(single) | 0.18 Pounds |
| Adjustable of collar | Maximum circumference 23.6inches |
| Suitable for dogs weight | 10-130 Pounds |
| Collar IP rating | IPX7 |
| Remote control waterproof rating | Not waterproof |
| Collar battery capacity | 350MA |
| Remote control battery capacity | 800MA |

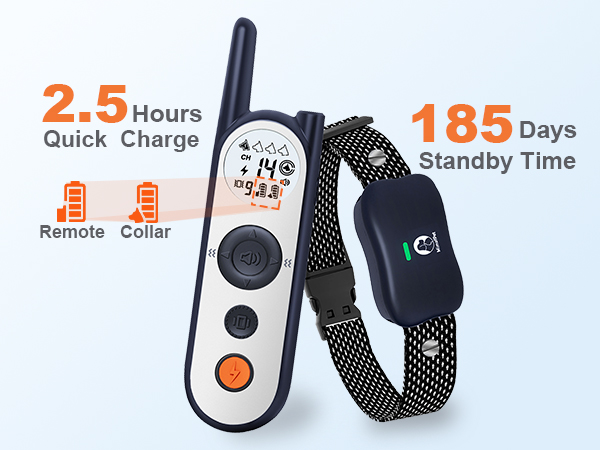

| Collar charging time | 2 hours |
| Remote control charging time | 2 hours |
| Collar standby time | 185 days |
| Remote control standby time | 185 days |
| Collar charging interface | Type-C connection |
| Collar and remote control reception range (X1) | Obstacles 1/4 Mile, open 3/4 Mile |
| Collar and remote control reception range (X2 X3) | Obstacles 1/3 Mile, open 1.1 5Mile |
| Signal receiving method | Two-way reception |
| Training mode | Beep/Vibration/Shock |
| Vibration level | 0-9 |
| Shock level | 0-30 |
Features & Details
●【2-In-1 Intelligent System】With both a wireless fence and training collar modes, this device offers a versatile solution for training and containing your dog. Advanced signal transmission technology provides reliable and consistent performance that allows avoiding false warnings due to weak signal.
●【Wireless Dog Fence Mode】In Wireless Fence mode, the transmitter emits a stable signal within a radius up to 1050ft, and if your dog goes out of this range, the receiver collar will emit a warning tone and vibration
●【Training Collar Mode】When in training collar mode, this device can manage up to 4 dogs in the same time. At your disposal 3 warning functions which you can launch by pressing the button on the transmitter - Tone, Vibration, and Shock. For safety, it includes 4 conductive posts with silicone caps. The strap is adjustable Maximum circumference 23.6 inches, so it will perfectly fit to dogs of breed and size within this range.
●【Waterproof IPX7 and Safe】Our device is designed with your dog's safety in mind, with built-in safety features like automatic shut-off to prevent over correction. Plus, waterproof design of Receiver means it can be used in all weather conditions. We recommend using the charging station as a holder for the transmitter in dog fence mode, and placing it at least 5ft above the ground for best results. Product comes with a replacement guarantee for customers who experience quality issues.
Important Safety Information
1. Disassembly of the collar is strictly prohibited under any circumstances, as it may destroy the waterproof function and thus void the product warranty.
2. If you want to test the electric shock function of the product, please use the delivered neon bulb for testing, do not test with your hands to avoid accidental injury.
3. Note that interference from the environment may cause the product to not work properly, such as high-voltage facilities, communication towers, thunderstorms and strong winds, large buildings, strong electromagnetic interference, etc.
Trouble shooting
1. When pressing buttons such as vibration or electric shock, and there is no response, you should first check:
1.1 Check if the remote control and collar are turned on.
1.2 Check whether the battery power of the remote control and collar is sufficient.
1.3 Check if the charger is 5V, or try another charging cable.
1.4 If the battery has not been used for a long time and the battery voltage is lower than the charging start voltage, it should be charged for a different period of time.
1.5 Verify that the collar is providing stimulation to your pet by placing a test light on the collar.
2. If the shock is weak, or has no effect on pets at all, you should check first.
2.1 Make sure that the contact points of the collar are snug against the pet's skin.
2.2 Try increasing the shock level.
3. If the remote control and collar do not respond or cannot receive signals, you should check first:
3.1 Check whether the remote control and the collar are successfully matched first.
3.2 If it cannot be paired, the collar and remote control should be fully charged first. The collar must be in the off state, and then long press the power button for 3 seconds to enter the red and green light flashing state before pairing (valid time is 30 seconds).
3.3 Check if the button of the remote control is pressed.
3.4 Check whether there is a electromagnetic field interference, strong signal etc.You can cancel the pairing first, and then re-pairing can automatically select a new channel to avoid interference.
4. The collar automatically emits sound, vibration, or electric shock signal, you can check first: check whether the remote control buttons are stuck.
 |
